suppressPackageStartupMessages({
  library(CellBench)
  library(scater)
  library(CellMixS)
  library(variancePartition)
  library(purrr)
  library(jcolors)
  library(here)
  library(tidyr)
  library(dplyr)
  library(stringr)
  library(ComplexHeatmap)
  #library(ggtern)
  library(gridExtra)
  library(scran)
  library(cowplot)
  library(CAMERA)
  library(ggrepel)
  library(readr)
})

options(bitmapType='cairo')

Dataset and parameter

sce <- readRDS(params$data)

param <- readRDS(params$param)
celltype <- param[["celltype"]]
batch <- param[["batch"]]
sample <- param[["sample"]]
dataset_name <- param[["dataset_name"]]
dataset_name
## [1] "hca"
n_genes <- nrow(sce)

table(colData(sce)[,celltype])
##
##           B cells   CD14+ Monocytes       CD4 T cells       CD8 T cells
##              1657              2782              5693              2522
##   Dendritic cells FCGR3A+ Monocytes         HEK cells          NK cells
##               274               897              4942              1425
table(colData(sce)[,batch])
##
##  C1HT-medium   C1HT-small     CEL-Seq2     Chromium Chromium(sn)        ddSEQ
##         2210         1603         1082         1604         1512         2104
##     Drop-Seq       ICELL8       inDrop     MARS-Seq   mcSCRB-Seq  Quartz-Seq2
##         2260         1912          685         1476         1680         1332
##   Smart-Seq2
##          732
res_de <- readRDS(params$de)
abund <- readRDS(params$abund)
outputfile <- params$out_file

cols <-c(c(jcolors('pal6'),jcolors('pal8'))[c(1,8,14,5,2:4,6,7,9:13,15:20)],jcolors('pal4'))
names(cols) <- c()

Visualize data

How are sample, celltypes and batches distributed within normalized, but not batch corrected data?

feature_list <- c(batch, celltype, sample)
feature_list <- feature_list[which(!is.na(feature_list))]

lapply(feature_list, function(feature_name){
  visGroup(sce, feature_name, dim_red= "UMAP")
})
## [[1]]

##
## [[2]]

##
## [[3]]

Batch strength/size

To compare or describe the severity of a batch effect there are different meassures. In general they can either give an estimate of the relative strength compared to the signal of interest e.g. the celltype signal or an absolut estimate e.g. the number of batch affected genes.

Variance partitioning

How much of the variance within the datasets can we attributed to the batch effect and how much could be explained by the celltype? Which genes are mostly affected?

vp_vars <- c("vp_batch", "vp_celltype", "vp_residuals")
vp <- as_tibble(rowData(sce)[, vp_vars])  %>% dplyr::mutate(gene= rownames(sce)) %>% dplyr::arrange(-vp_batch)
vp_sub <- vp[1:3] %>% set_rownames(vp$gene)
## Warning: Setting row names on a tibble is deprecated.
#plot
plotPercentBars( vp_sub[1:10,] )

plotVarPart( vp_sub )

Variance and gene expression

Are general expression and batch effect related? Does the batch effect or the celltype effect preferable manifest within highly, medium or low expressed genes?

#define expression classes by mean expression quantiles
th <- quantile(rowMeans(assays(sce)$logcounts), c(.33, .66))
high_th <- th[2]
mid_th <- th[1]

rowData(sce)$expr_class <- ifelse(rowMeans(assays(sce)$logcounts) > high_th, "high",
                                  ifelse(rowMeans(assays(sce)$logcounts) <= high_th &
                                           rowMeans(assays(sce)$logcounts) > mid_th,
                                         "medium", "low"))
rowData(sce)$mean_expr <- rowMeans(assays(sce)$logcounts)

#plot
plot_dev <- function(var, var_col){
  ggplot(as.data.frame(rowData(sce)), aes_string(x = "mean_expr", y = var, colour = var_col)) +
  geom_point() +
  geom_smooth(method = "lm", se = FALSE)
}

#Ternary plots
# ggtern(data=as.data.frame(rowData(sce)),aes(vp_batch, vp_celltype, vp_residuals)) +
#   stat_density_tern(aes(fill=..level.., alpha=..level..),geom='polygon') +
#   scale_fill_gradient2(high = "red") +
#   guides(color = "none", fill = "none", alpha = "none") +
#   geom_point(size= 0.1, alpha = 0.5)  +
#   Llab("batch") +
#   Tlab("celltype") +
#   Rlab("other") +
#   theme_bw()
#
# t1 <- ggtern(data=as.data.frame(rowData(sce)),aes(vp_batch, vp_celltype, vp_residuals)) +
#   geom_point(size = 0.1) +
#   geom_density_tern() +
#   Llab("batch") +
#   Tlab("celltype") +
#   Rlab("other") +
#   theme_bw()

## Summarize variance partitioning
# How many genes have a variance component affected by batch with > 1%
n_batch_gene <- vp_sub %>% dplyr::filter(vp_batch > 0.01) %>% nrow()/n_genes
n_batch_gene10 <- vp_sub %>% dplyr::filter(vp_batch > 0.1) %>% nrow()/n_genes
n_celltype_gene <- vp_sub %>% dplyr::filter(vp_celltype> 0.01) %>% nrow()/n_genes
n_rel <- n_batch_gene/n_celltype_gene

# Mean variance that is explained by the batch effect/celltype
m_batch <- mean(vp_sub$vp_batch, na.rm = TRUE)
m_celltype <- mean(vp_sub$vp_celltype, na.rm = TRUE)
m_rel <- m_batch/m_celltype

Scatterplot batch

plot_dev("vp_batch", "vp_batch")
## `geom_smooth()` using formula 'y ~ x'

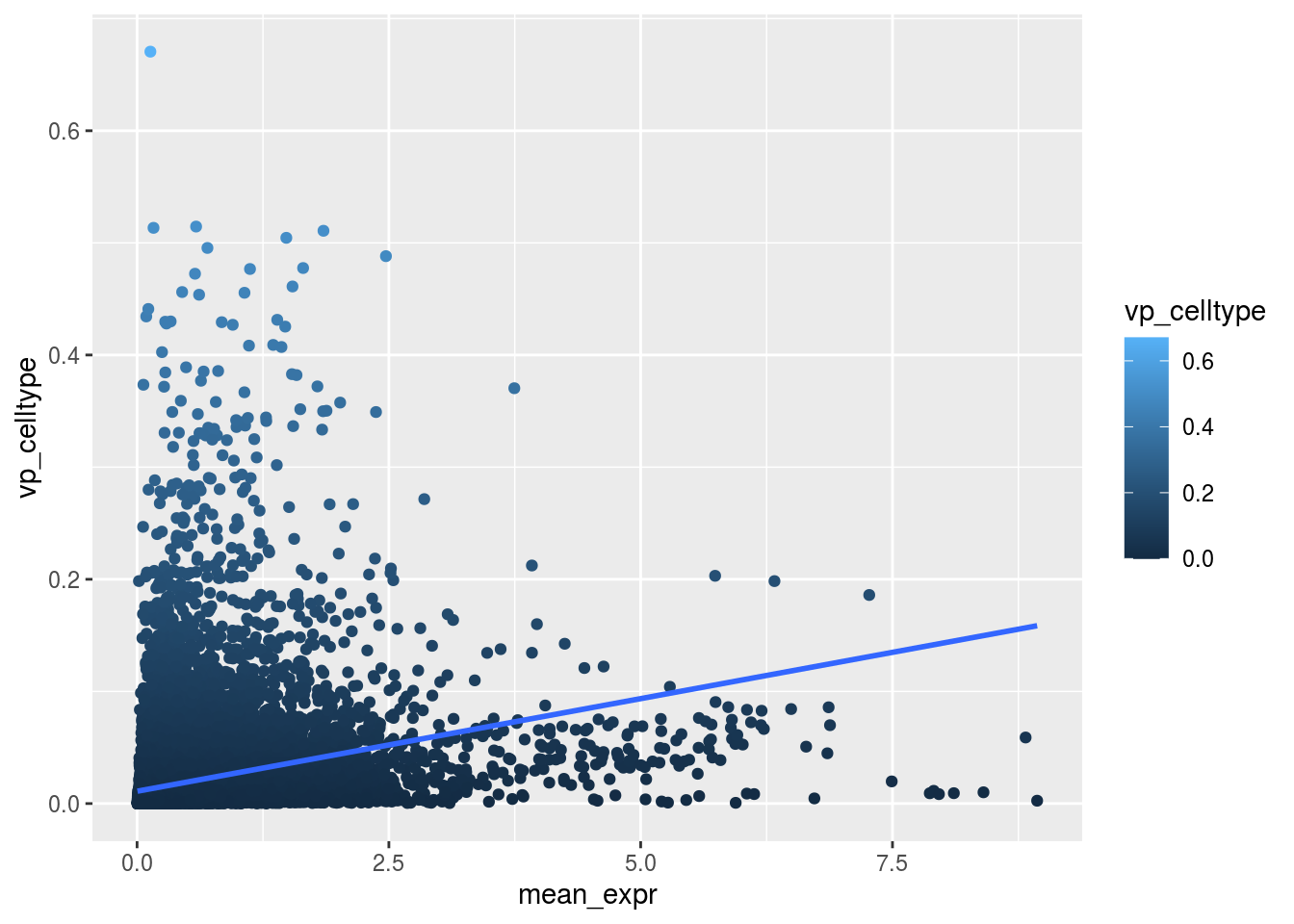

Scatterplot celltype

plot_dev("vp_celltype", "vp_celltype")
## `geom_smooth()` using formula 'y ~ x'

Ternary plot all genes

#t1

Ternary plot gene expression classes

#t1 + facet_grid(~expr_class)

Cellspecific Mixing score

Overall

#visualize overall cms score
visHist(sce, n_col = 2, prefix = FALSE)

visMetric(sce, metric = "cms_smooth", dim_red = "UMAP")

visGroup(sce, celltype, dim_red = "UMAP")

#summarize
mean_cms <- mean(sce$cms)
n_cms_0.01 <- length(which(sce$cms < 0.01))
cluster_mean_cms <- as_tibble(colData(sce)) %>% group_by_at(celltype) %>% summarize(cms_mean = mean(cms))
var_cms <- var(cluster_mean_cms$cms_mean)

Celltypes cms smooth

#compare by celltypes
visCluster(sce, metric_var = "cms_smooth", cluster_var = celltype)
## Picking joint bandwidth of 0.0151

visCluster(sce, metric_var = "cms_smooth", cluster_var = celltype, violin = TRUE)

Celltypes histogram

#compare histogram by celltype

p <- ggplot(as.data.frame(colData(sce)),
            aes_string(x = "cms", fill = celltype)) +
                geom_histogram() +
                facet_wrap(celltype, scales = "free_y", ncol = 3) +
                scale_fill_manual(values = cols) +
                theme_classic()

p + geom_vline(aes_string(xintercept = "cms_mean",
                   colour = celltype),
               cluster_mean_cms, linetype=2) +
  scale_color_manual(values = cols)
## `stat_bin()` using `bins = 30`. Pick better value with `binwidth`.

Celltype specificity

Celltype abundance

meta_tib <- as_tibble(colData(sce)) %>% group_by_at(c(batch, celltype)) %>% summarize(n = n()) %>% dplyr::mutate(cell_freq = n / sum(n))

plot_abundance <- function(cluster_var, tib, x_var){
  meta_df <- as.data.frame(eval(tib))
  p <- ggplot(data=meta_df, aes_string(x=x_var, y="cell_freq", fill = cluster_var)) +
    geom_bar(stat="identity") + scale_fill_manual(values=cols, name = "celltype")
  p + coord_flip() + theme_minimal()
}

plot_abundance(cluster_var = celltype, tib = meta_tib, x_var = batch)

#summarize diff abundance
mean_rel_abund_diff <- mean(unlist(abund))
min_rel_abund_diff <- min(unlist(abund))
max_rel_abund_diff <- max(unlist(abund))

Batch and celltype specific count distributions

Do the overall count distribution vary between batches? Are count distributions celltype depended

#batch level
bids <- levels(as.factor(colData(sce)[, batch]))
names(bids) <- bids
cids <- levels(as.factor(colData(sce)[, celltype]))
names(cids) <- cids

#mean gene expression by batch and cluster
mean_list <- lapply(bids, function(batch_var){
  mean_cluster <- lapply(cids, function(cluster_var){
    counts_sc <- as.matrix(logcounts(
      sce[, colData(sce)[, batch] %in% batch_var &
            colData(sce)[, celltype] %in% cluster_var]))
  })
  mean_c <- mean_cluster %>% map(rowMeans) %>% bind_rows %>%
    dplyr::mutate(gene=rownames(sce)) %>%
    gather(cluster, logcounts, cids)
})
## Note: Using an external vector in selections is ambiguous.
## ℹ Use `all_of(cids)` instead of `cids` to silence this message.
## ℹ See <https://tidyselect.r-lib.org/reference/faq-external-vector.html>.
## This message is displayed once per session.
mean_expr <- mean_list %>% bind_rows(.id= "batch")

ggplot(mean_expr, aes(x=logcounts, colour=batch)) + geom_density(alpha=.3) +
  theme_classic() +
  facet_wrap( ~ cluster, ncol = 3) +
  scale_colour_manual(values = cols) +
  scale_x_continuous(limits =  c(0, 7))
## Warning: Removed 3872 rows containing non-finite values (stat_density).

Batch to batch comparisons of expression distributions

Differentially expressed genes

Upset plot

## Upset plot\
cont <- param[["cont"]]
cs <- names(cont)
names(cs) <- cs

# Filter DEG by pvalue
FilterDEGs <- function (degDF = df, filter = c(FDR = 5)){
  rownames(degDF) <- degDF$gene
  #pval <- degDF[, grep("adj.P.Val$", colnames(degDF)), drop = FALSE]
  pval <- degDF[, grep("PValue$", colnames(degDF)), drop = FALSE]
  pf <- pval <= filter["FDR"]/100
  pf[is.na(pf)] <- FALSE
  DEGlistUPorDOWN <- sapply(colnames(pf), function(x) rownames(pf[pf[, x, drop = FALSE], , drop = FALSE]), simplify = FALSE)
}

result <- list()
m2 <- list()

for(jj in 1:length(cs)){
  result[[jj]] <- sapply(res_de[[1]][[names(cs)[jj]]], function(x) FilterDEGs(x))
  names(result[[jj]]) <- cids
  m2[[jj]] = make_comb_mat(result[[jj]], mode = "intersect")
}

names(result) <- names(cs)
names(m2) <- names(cs)

lapply(m2, function(x) UpSet(x))
## $`Chromium-CELseq2`

##
## $`Chromium-Dropseq`

##
## $`Chromium-SMARTseq2`

##
## $`Chromium-C1HT-medium`

##
## $`Chromium-C1HT-small`

##
## $`Chromium-Chromium(sn)`

##
## $`Chromium-ddSEQ`

##
## $`Chromium-ICELL8`

##
## $`Chromium-inDrop`

##
## $`Chromium-MARS-Seq`

##
## $`Chromium-mcSCRB-Seq`

##
## $`Chromium-Quartz-Seq2`

Logfold_change and GSEA

# DE genes (per cluster and mean)
res <- res_de[["table"]]
#n_de <- lapply(res, function(y) vapply(y, function(x) sum(x$adj.P.Val < 0.05), numeric(1)))
n_de <- lapply(res, function(y) vapply(y, function(x) sum(x$adj.PValue < 0.05), numeric(1)))
n_genes_lfc1 <- lapply(res, function(y) vapply(y, function(x) sum(abs(x$logFC) > 1), numeric(1)))
mean_n_genes_lfc1 <- mean(unlist(n_genes_lfc1))/n_genes

# plot DE for all comparison and check gene sets
#get geneset
gs <- read_delim(params$gs, delim = "\n", col_names = "cat")
## Parsed with column specification:
## cols(
##   cat = col_character()
## )
cats <- sapply(gs$cat, function(u) strsplit(u, "\t")[[1]][-2],
               USE.NAMES = FALSE)
names(cats) <- sapply(cats, .subset, 1)
cats <- lapply(cats, function(u) u[-1])

plotDE <- function(cont_var){
  #res_s <- res[[cont_var]] %>% map(filter, adj.P.Val < .05) %>% map(filter, abs(logFC) > 1)
  res_s <- res[[cont_var]] %>% map(dplyr::filter, PValue < .05) %>% map(dplyr::filter, abs(logFC) > 1)

  #plot
  lapply(names(res[[cont_var]]), function(ct){
    ct_de <- res[[cont_var]][[ct]]
    ct_de$gene <- gsub('[A-z0-9]*\\.', '', ct_de$gene)
    res_s[[ct]]$gene <- gsub('[A-z0-9]*\\.', '', res_s[[ct]]$gene)

    #p <- ggplot(ct_de, aes(x = AveExpr, y = logFC, colour = abs(logFC) > 1, label = gene)) +
    p <- ggplot(ct_de, aes(x = logCPM, y = logFC, colour = abs(logFC) > 2, label = gene)) +
      geom_point(size = 2, alpha = .5) +
      geom_label_repel(data = res_s[[ct]]) +
      ggtitle(paste0(ct,": ", cont_var)) +
      theme_classic()
    print(p)

    cat("Cluster:", ct, "Contrast:", cont_var,
        "Num genes:", nrow(ct_de), "Num DE:", nrow(res_s[[ct]]), "\n" )

    # run 'camera' for this comparison
    inds <- ids2indices(cats, ct_de$gene)
    #cm <- cameraPR(ct_de$t, inds) #LR
    cm <- cameraPR(ct_de$F, inds)
    print(cm %>% rownames_to_column("category") %>%
      filter(FDR < .05 & NGenes >= 5) %>% head(8))
  })
}

if( length(names(res)) <= 3 ){
    pathways <- lapply(names(res), plotDE)
}

Summarize differential expression analysis

# DE genes (per cluster and mean)
#n_de <- lapply(res, function(y) vapply(y, function(x) sum(x$adj.P.Val < 0.05), numeric(1)))
n_de <- lapply(res, function(y) vapply(y, function(x) sum(x$PValue < 0.05), numeric(1)))
n_de_cl <- lapply(res, function(y) vapply(y, function(x) nrow(x), numeric(1)))
mean_n_de <- lapply(n_de, function(x) mean(x))
mean_mean_n_de <- mean(unlist(mean_n_de))/n_genes
min_mean_n_de <- min(unlist(mean_n_de))/n_genes
max_mean_n_de <- max(unlist(mean_n_de))/n_genes

# Genes with lfc > 1
n_genes_lfc1 <- lapply(res, function(y) vapply(y, function(x) sum(abs(x$logFC) > 1), numeric(1)))
mean_n_genes_lfc1 <- mean(unlist(n_genes_lfc1))/n_genes
min_n_genes_lfc1 <- min(unlist(n_genes_lfc1))/n_genes
max_n_genes_lfc1 <- max(unlist(n_genes_lfc1))/n_genes

# DE genes overlap between celltypes (celltype specific de genes)
# Genes are "overlapping" if they are present in all clusters with at least 10% of all cells
de_overlap <- lapply(result, function(x){
  result2 <- x[table(colData(sce)[, celltype]) > ncol(sce) * 0.1]
  de_overlap <- length(Reduce(intersect, result2))
  de_overlap
})

mean_de_overlap <- mean(unlist(de_overlap))/n_genes
min_de_overlap <- min(unlist(de_overlap))/n_genes
max_de_overlap <- max(unlist(de_overlap))/n_genes

#Genes unique to single celltypes
unique_genes_matrix <- NULL
unique_genes <- NULL
cb <- length(names(result[[1]]))
unique_genes <- lapply(result,function(x){
  for( i in 1:cb ){
    unique_genes[i] <-as.numeric(length(setdiff(unlist(x[i]),unlist(x[-i]))))
  }
  unique_genes_matrix <- cbind(unique_genes_matrix, unique_genes)
  unique_genes_matrix
})

unique_genes <- Reduce('cbind', unique_genes)
colnames(unique_genes) <- names(result)
rownames(unique_genes) <- names(result[[1]])

# Relative cluster specificity (unique/overlapping)
rel_spec1 <- NULL
for( i in 1:dim(unique_genes)[2] ){
  rel_spec <- unique_genes[,i]/de_overlap[[i]]
  rel_spec1 <- cbind(rel_spec1,rel_spec)
}

mean_rel_spec <- mean(rel_spec1)
min_rel_spec <- min(rel_spec1)
max_rel_spec <- max(rel_spec1)

Celltype specific DE distributions

How similar is the batch effect between celltypes. Do we have similar logFC distributions or different?

combine_folds <- function(cont_var){
  #extract the contrast of interest and change log2fold colums names to be unique
  B <- res[[cont_var]]
  new_name <- function(p){
    colnames(B[[p]])[3] <- paste0("logFC_", p)
    return(B[[p]][,c(1,3)])
    }
  B_new_names <- lapply(names(B),new_name)
  names(B_new_names) <- names(B)
  #combine log2fold colums
  Folds <- Reduce(function(...){inner_join(..., by="gene")}, B_new_names)
}

all_folds <- lapply(cs, combine_folds)

#define pannels for pairs() function
panel.cor <- function(x, y, digits = 2, cex.cor){
  usr <- par("usr"); on.exit(par(usr))
  par(usr = c(0, 1, 0, 1))
  r <- abs(cor(x, y))
  txt <- format(c(r, 0.123456789), digits=digits)[1]
  test <- cor.test(x,y)
  Signif <- ifelse(round(test$p.value, 3) < 0.001,
                   "p<0.001",
                   paste("p=",round(test$p.value,3)))
  text(0.5, 0.25, paste("r=",txt), cex = 3)
  text(.5, .75, Signif, cex = 3)
}

panel.smooth <- function (x, y, col = "blue", bg = NA, pch = 18, cex = 1.5,
                          col.smooth = "red", span = 2/3, iter = 3, ...){
  points(x, y, pch = pch, col = col, bg = bg, cex = cex)
  ok <- is.finite(x) & is.finite(y)
  if( any(ok) )
    lines(stats::lowess(x[ok], y[ok], f = span, iter = iter),
          col = col.smooth, ...)
}

panel.hist <- function(x, ...){
  usr <- par("usr"); on.exit(par(usr))
  par(usr = c(usr[1:2], 0, 1.5) )
  h <- hist(x, plot = FALSE)
  breaks <- h$breaks
  nB <- length(breaks)
  y <- h$counts
  y <- y/max(y)
  rect(breaks[-nB], 0, breaks[-1], y, col="cyan", ...)
}
#plot correlations
lapply(names(all_folds), function(x) pairs(all_folds[[x]][,-1],
                                           lower.panel = panel.smooth,
                                           upper.panel = panel.cor,
                                           diag.panel = panel.hist, main = x))

## [[1]]
## NULL
##
## [[2]]
## NULL
##
## [[3]]
## NULL
##
## [[4]]
## NULL
##
## [[5]]
## NULL
##
## [[6]]
## NULL
##
## [[7]]
## NULL
##
## [[8]]
## NULL
##
## [[9]]
## NULL
##
## [[10]]
## NULL
##
## [[11]]
## NULL
##
## [[12]]
## NULL
#extract correlation coefficients
# correlation coefficients from celltype specific gege logFC

lfc_cor_list <-lapply(names(all_folds), function(com){
  exclude <- which(table(colData(sce)[,celltype]) < 100)
  r <- cor(all_folds[[com]][, -c(1, (exclude + 1))])
  mean_r <- (sum(r) - ncol(r))/ (ncol(r)^2 - ncol(r))
})

mean_lfc_cor <- mean(unlist(lfc_cor_list))

Batch categorization

How does the batch effect manifest? Can we describe it by “simple” mean shifts of expression levels for some genes for all the cells in a given celltype and batch? Can we “remove” the batch effcet using a linear model with batch, batch and celltype or batch and celltype interacting?

#Visualize different models
vis_type <- function(dim_red){
  g <- visGroup(sce, batch, dim_red = dim_red) +
    ggtitle("unadjusted")
  g1 <- visGroup(sce, batch, dim_red = paste0(dim_red, "_Xadj1")) +
    ggtitle("constant batch effect")
  g2 <- visGroup(sce, batch, dim_red = paste0(dim_red, "_Xadj2")) +
    ggtitle("constant batch effect, different ct composition")
  g3 <- visGroup(sce, batch, dim_red = paste0(dim_red, "_Xadj3")) +
    ggtitle("celltype and batch effect interact")
  do.call("grid.arrange", c(list(g, g1, g2, g3), ncol = 2))
}

PCA

vis_type("PCA")

UMAP

vis_type("UMAP")

Cellspecific Mixing Score

# #Cellspecific Mixing score (Batch effect strength after "removal")
visHist(sce, metric = c("cms", "cms.Xadj1", "cms.Xadj2", "cms.Xadj3"), prefix = FALSE)

visIntegration(sce, metric = "cms", metric_name = "cms")
## Picking joint bandwidth of 0.00319

Simulation parameter

Extract parameter to use as input into simualation

#percentage of batch affected genes
cond <- gsub("-.*", "", names(n_de))
cond <- c(cond, unique(gsub(".*-", "", names(n_de))))
cond <- unique(cond)
de_be_tab <- n_de %>% bind_cols()
de_cl_tab <- n_de_cl %>% bind_cols()

de_be <- cond %>% map(function(x){
  de_tab <- de_be_tab[, grep(x, colnames(de_be_tab))]
  de_be <- rowMeans(de_tab)
}) %>% bind_cols() %>% set_colnames(cond)

n_cl <- cond %>% map(function(x){
  cl_tab <- de_cl_tab[, grep(x, colnames(de_cl_tab))]
  de_cl <- rowMeans(cl_tab)
}) %>% bind_cols() %>% set_colnames(cond)


p_be <- de_be/n_cl
mean_p_be <- mean(colMeans(p_be))
min_p_be <- min(colMins(as.matrix(p_be)))
max_p_be <- max(colMaxs(as.matrix(p_be)))
sd_p_be <- mean(colSds(as.matrix(p_be)))
if(is.na(sd_p_be)){ sd_p_be <- 0 }


#### Percentage of celltype specific genes "p_ct"
n_de_unique <- lapply(result,function(x){
  de_genes <- unlist(x) %>% unique() %>% length()
  de_genes <- de_genes/length(x)
}) %>% bind_cols()


rel_spec2 <- NULL
for(i in 1:length(de_overlap)){
  rel_spec <- de_overlap[[i]]/mean(n_de[[i]][table(colData(sce)[, celltype]) > dim(expr)[2] * 0.1])
  rel_spec2 <- cbind(rel_spec2, rel_spec)
}

mean_p_ct <- 1 - mean(rel_spec2)
max_p_ct <- 1 - min(rel_spec2)
min_p_ct <- 1 - max(rel_spec2)
sd_p_ct <- sd(rel_spec2)
if(is.na(sd_p_ct)){ sd_p_ct <- 0 }

# Logfold change
#logFoldchange batch effect distribution
mean_lfc_cl <- lapply(res, function(y) vapply(y, function(x){
  #de_genes <- which(x$adj.P.Val < 0.05)
  de_genes <- which(x$adj.PValue < 0.05)
  mean_de <- mean(abs(x[, "logFC"]))}
  , numeric(1))) %>% bind_cols()

mean_lfc_be <- mean(colMeans(mean_lfc_cl, na.rm = TRUE))
min_lfc_be <- min(colMins(as.matrix(mean_lfc_cl), na.rm = TRUE))
max_lfc_be <- max(colMaxs(as.matrix(mean_lfc_cl), na.rm = TRUE))

Summarize batch effect

  • Batch size
  • Celltype specificity
  • “Batch genes”
  • batch type
#Size? How much of the variance can be attributed to the batch effect?
size <- data.frame("batch_genes_1per" = n_batch_gene,       # 1.variance partition
                   "batch_genes_10per" = n_batch_gene10,
                   "celltype_gene_1per" = n_celltype_gene,
                   "relative_batch_celltype" = n_rel,
                   "mean_var_batch" = m_batch,
                   "mean_var_celltype" = m_celltype,
                   "rel_mean_ct_batch" = m_rel,
                   "mean_cms" = mean_cms,                    #2.cms
                   "n_cells_cms_0.01" = n_cms_0.01,
                   "mean_mean_n_de_genes" = mean_mean_n_de,  #3.de genes
                   "max_mean_n_de_genes" = max_mean_n_de,
                   "min_mean_n_de_genes" = min_mean_n_de,
                   "mean_n_genes_lfc1" = mean_n_genes_lfc1,
                   "min_n_genes_lfc1" = min_n_genes_lfc1,
                   "max_n_genes_lfc1" = max_n_genes_lfc1,
                   "n_cells_total" = ncol(sce),              #4.general
                   "n_genes_total" = nrow(sce))


#Celltype-specificity? How celltype/cluster specific are batch effects?
# Differences in size, distribution or abundance? Do we find correlations between lfcs,
# overlap in de genes, pathways? Interaction between ct and be?
celltype <- data.frame('mean_rel_abund_diff' = mean_rel_abund_diff, #1.abundance
                       'min_rel_abund_diff' = min_rel_abund_diff,
                       'max_rel_abund_diff' = max_rel_abund_diff,
                       "celltype_var_cms" = var_cms,                 #2.size/strength
                       "mean_de_overlap" = mean_de_overlap,
                       "min_de_overlap" = min_de_overlap,
                       "max_de_overlap" = max_de_overlap,
                       "mean_rel_cluster_spec"= mean_rel_spec,
                       "min_rel_cluster_spec"= min_rel_spec,
                       "max_rel_cluster_spec"= max_rel_spec,
                       "mean_lfc_cor" = mean_lfc_cor )


sim <- data.frame("mean_p_be" = mean_p_be,
                  "max_p_be" = max_p_be,
                  "min_p_be" = min_p_be,
                  "sd_p_be" = sd_p_be,
                  "mean_lfc_be" = mean_lfc_be,
                  "min_lfc_be" = min_lfc_be,
                  "max_lfc_be" = max_lfc_be,
                  "mean_p_ct"= mean_p_ct,
                  "min_p_ct"= min_p_ct,
                  "max_p_ct"= max_p_ct,
                  "sd_p_ct" = sd_p_ct)


summary <- cbind(size, celltype, sim) %>% set_rownames(dataset_name)

### -------------- save summary object ----------------------###
saveRDS(summary, file = outputfile)
sessionInfo()
## R version 3.6.1 (2019-07-05)
## Platform: x86_64-pc-linux-gnu (64-bit)
## Running under: Ubuntu 16.04.6 LTS
##
## Matrix products: default
## BLAS:   /home/aluetg/R/lib/R/lib/libRblas.so
## LAPACK: /home/aluetg/R/lib/R/lib/libRlapack.so
##
## locale:
##  [1] LC_CTYPE=en_US.UTF-8       LC_NUMERIC=C
##  [3] LC_TIME=en_US.UTF-8        LC_COLLATE=en_US.UTF-8
##  [5] LC_MONETARY=en_US.UTF-8    LC_MESSAGES=en_US.UTF-8
##  [7] LC_PAPER=en_US.UTF-8       LC_NAME=C
##  [9] LC_ADDRESS=C               LC_TELEPHONE=C
## [11] LC_MEASUREMENT=en_US.UTF-8 LC_IDENTIFICATION=C
##
## attached base packages:
##  [1] grid      parallel  stats4    stats     graphics  grDevices utils
##  [8] datasets  methods   base
##
## other attached packages:
##  [1] readr_1.3.1                 ggrepel_0.8.2
##  [3] CAMERA_1.42.0               xcms_3.8.2
##  [5] MSnbase_2.12.0              ProtGenerics_1.18.0
##  [7] mzR_2.20.0                  Rcpp_1.0.3
##  [9] cowplot_1.0.0               scran_1.14.6
## [11] gridExtra_2.3               ComplexHeatmap_2.2.0
## [13] stringr_1.4.0               dplyr_0.8.5
## [15] tidyr_1.0.2                 here_0.1
## [17] jcolors_0.0.4               purrr_0.3.3
## [19] variancePartition_1.16.1    scales_1.1.0
## [21] foreach_1.4.8               limma_3.42.2
## [23] CellMixS_1.2.4              kSamples_1.2-9
## [25] SuppDists_1.1-9.5           scater_1.14.6
## [27] ggplot2_3.3.0               CellBench_1.2.0
## [29] tibble_2.1.3                magrittr_1.5
## [31] SingleCellExperiment_1.8.0  SummarizedExperiment_1.16.1
## [33] DelayedArray_0.12.2         BiocParallel_1.20.1
## [35] matrixStats_0.55.0          Biobase_2.46.0
## [37] GenomicRanges_1.38.0        GenomeInfoDb_1.22.0
## [39] IRanges_2.20.2              S4Vectors_0.24.3
## [41] BiocGenerics_0.32.0
##
## loaded via a namespace (and not attached):
##   [1] tidyselect_1.0.0         lme4_1.1-21              RSQLite_2.2.0
##   [4] htmlwidgets_1.5.1        munsell_0.5.0            codetools_0.2-16
##   [7] preprocessCore_1.48.0    statmod_1.4.34           withr_2.1.2
##  [10] colorspace_1.4-1         knitr_1.28               rstudioapi_0.11
##  [13] robustbase_0.93-5        mzID_1.24.0              labeling_0.3
##  [16] GenomeInfoDbData_1.2.2   farver_2.0.3             bit64_0.9-7
##  [19] rprojroot_1.3-2          vctrs_0.2.4              xfun_0.12
##  [22] BiocFileCache_1.10.2     R6_2.4.1                 doParallel_1.0.15
##  [25] ggbeeswarm_0.6.0         clue_0.3-57              rsvd_1.0.3
##  [28] locfit_1.5-9.1           bitops_1.0-6             assertthat_0.2.1
##  [31] nnet_7.3-13              beeswarm_0.2.3           gtable_0.3.0
##  [34] affy_1.64.0              rlang_0.4.5              GlobalOptions_0.1.1
##  [37] splines_3.6.1            acepack_1.4.1            impute_1.60.0
##  [40] checkmate_2.0.0          BiocManager_1.30.10      yaml_2.2.1
##  [43] reshape2_1.4.3           backports_1.1.5          Hmisc_4.3-1
##  [46] MassSpecWavelet_1.52.0   RBGL_1.62.1              tools_3.6.1
##  [49] ellipsis_0.3.0           affyio_1.56.0            gplots_3.0.3
##  [52] RColorBrewer_1.1-2       ggridges_0.5.2           plyr_1.8.6
##  [55] base64enc_0.1-3          progress_1.2.2           zlibbioc_1.32.0
##  [58] RCurl_1.98-1.1           prettyunits_1.1.1        rpart_4.1-15
##  [61] GetoptLong_0.1.8         viridis_0.5.1            cluster_2.1.0
##  [64] colorRamps_2.3           data.table_1.12.8        circlize_0.4.8
##  [67] RANN_2.6.1               pcaMethods_1.78.0        packrat_0.5.0
##  [70] hms_0.5.3                evaluate_0.14            pbkrtest_0.4-8.6
##  [73] XML_3.99-0.3             jpeg_0.1-8.1             shape_1.4.4
##  [76] compiler_3.6.1           KernSmooth_2.23-16       ncdf4_1.17
##  [79] crayon_1.3.4             minqa_1.2.4              htmltools_0.4.0
##  [82] mgcv_1.8-31              Formula_1.2-3            lubridate_1.7.4
##  [85] DBI_1.1.0                dbplyr_1.4.2             MASS_7.3-51.5
##  [88] rappdirs_0.3.1           boot_1.3-24              Matrix_1.2-18
##  [91] cli_2.0.2                vsn_3.54.0               gdata_2.18.0
##  [94] igraph_1.2.4.2           pkgconfig_2.0.3          foreign_0.8-76
##  [97] MALDIquant_1.19.3        vipor_0.4.5              dqrng_0.2.1
## [100] multtest_2.42.0          XVector_0.26.0           digest_0.6.25
## [103] graph_1.64.0             rmarkdown_2.1            htmlTable_1.13.3
## [106] edgeR_3.28.1             DelayedMatrixStats_1.8.0 listarrays_0.3.1
## [109] curl_4.3                 gtools_3.8.1             rjson_0.2.20
## [112] nloptr_1.2.2.1           lifecycle_0.2.0          nlme_3.1-145
## [115] BiocNeighbors_1.4.2      fansi_0.4.1              viridisLite_0.3.0
## [118] pillar_1.4.3             lattice_0.20-40          httr_1.4.1
## [121] DEoptimR_1.0-8           survival_3.1-11          glue_1.3.1
## [124] png_0.1-7                iterators_1.0.12         bit_1.1-15.2
## [127] stringi_1.4.6            blob_1.2.1               BiocSingular_1.2.2
## [130] latticeExtra_0.6-29      caTools_1.18.0           memoise_1.1.0
## [133] irlba_2.3.3
