valve subgroups

Author

Almut Lütge

Valve subgroups

Explore expression pattern of valve sub types

Preamble

library(scran)
library(dplyr)
library(tidyr)
library(ggplot2)
library(scuttle)
library(DESeq2)
library(edgeR)
library(VennDiagram)
library(clustifyr)
library(RColorBrewer)
library(ComplexHeatmap)
library(scater)
library(patchwork)
library(SingleCellExperiment)
library(stringr)
library(gridExtra)

Data

Single cell data

sce <- readRDS(file.path("..", "data", "sce_all_metadata_genes.rds"))

sce_val <- sce[,sce$logcounts.scaled.pca.harmony.neighbors_connectivities.leiden_1res %in% c("8", "9")]
sce_val$val_cluster <- sce_val$logcounts.scaled.pca.harmony.neighbors_connectivities.leiden_1res |>
  droplevels()

levels(sce_val$val_cluster) <- c("valve1", "valve2")

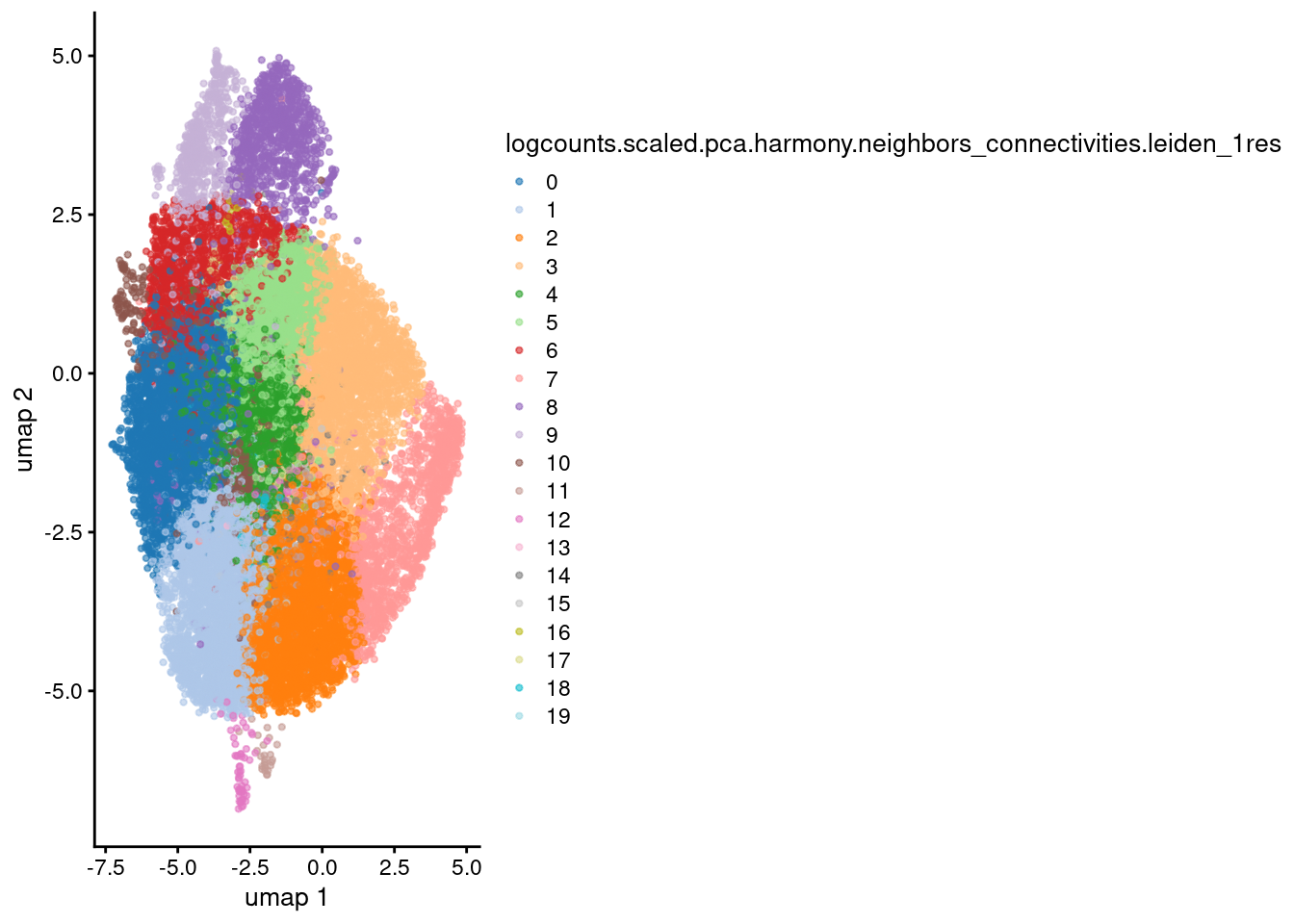

Cluster plot

plotReducedDim(sce, dimred="umap",
                     colour_by="logcounts.scaled.pca.harmony.neighbors_connectivities.leiden_1res",
                     point_size = 0.8)

Pseudobulk valve1 vs valve2

pb_val <-  aggregateAcrossCells(sce_val,
                               id=colData(sce_val)[,c("val_cluster", "donor")],
                               use.assay.type = "counts")

pb_val <- pb_val[,pb_val$ncells >= 10]
print(table(pb_val$val_cluster))


valve1 valve2
     7      7

# de
design <- model.matrix(~ donor + val_cluster, as.data.frame(colData(pb_val)))
dgl <- DGEList(counts(pb_val))
dgl <- calcNormFactors(dgl)
dgl <- estimateDisp(dgl, design)
fit <- glmQLFit(dgl, design)
de <- glmQLFTest(fit, coef="val_clustervalve2")

tt <- topTags(de, n = Inf)$table
tt$full_gene_name <- rownames(tt)
tt$gene_symbol <- gsub("^.*\\.","",rownames(tt))

saveRDS(tt, file.path("..", "out", "de", "valve2_vs_1.rds"))
write.csv(tt, file.path("..", "out", "de", "valve2_vs_1.csv"))

Bulk expression data

fc_files <- list.files("../data/bulk-data-featurecounts", pattern="*.txt", full.names=TRUE)
fc_name <- list.files("../data/bulk-data-featurecounts", pattern="*.txt", full.names=FALSE)
fc_name <- gsub(".txt", "", fc_name)
fc_list <- lapply(fc_files, read.table, header = TRUE)
names(fc_list) <- fc_name

fc_list <- lapply(names(fc_list), function(fc_nam){
  fc <- fc_list[[fc_nam]]
  fc[,fc_nam] <- fc$matchCounts
  fc <- fc |> select(-matchCounts)
  fc
})

fc_tab <- fc_list |> purrr::reduce(full_join, by = "Identifier")
rownames(fc_tab) <- fc_tab$Identifier
fc_tab <- fc_tab |> select(-Identifier)

meta <- data_frame("cond" = gsub(".*dyn_", "", colnames(fc_tab)),
                   "sample" = gsub("_[0-9]{1,2}dyn.*", "", colnames(fc_tab)),
                   "strength" = gsub("^.*_[0-9]_|_[a-z].*$", "", colnames(fc_tab)))

Warning: `data_frame()` was deprecated in tibble 1.1.0.
ℹ Please use `tibble()` instead.

rownames(meta) <- colnames(fc_tab)

Warning: Setting row names on a tibble is deprecated.

# to get rowData
bulk_expr <- read.csv(file.path("..", "data", "4Donors_FPKM_Laminar_4-over-Oscillatory_4.csv"))
bulk_expr <- bulk_expr[-1,]
count_nam <- grep(".*FPKM",colnames(bulk_expr), value = T)
row_dat_nam <- colnames(bulk_expr)[!colnames(bulk_expr) %in% c("X", "Cluster", count_nam)]
row_dat <- bulk_expr[,c("gene_id", "gene_name")]
rownames(row_dat) <- row_dat$gene_id
row_dat <- row_dat[rownames(fc_tab),]

# Generate summarized experiment
bulk <- SummarizedExperiment(assays=list(counts=as.matrix(fc_tab)),
                             colData=meta, rowData = row_dat)

dim(bulk)

[1] 21493    24

rownames(bulk) <- paste0(rowData(bulk)$gene_id, ".", rowData(bulk)$gene_name)

#Filter genes
bulk <- bulk[rowSums(assay(bulk, "counts")) > 5, ]
dim(bulk)

[1] 16779    24

#Filter sample
bulk <- bulk[, !bulk$sample %in% "440z009_2"]
bulk <- bulk[, !bulk$strength %in% "04dyn"]


#DESEQ2 dataset
dds <- DESeq2::DESeqDataSet(bulk, design = ~ sample + cond)

Warning in DESeq2::DESeqDataSet(bulk, design = ~sample + cond): some variables
in design formula are characters, converting to factors

dds <- estimateSizeFactors(dds)
vsd <- DESeq2::vst(dds, blind = TRUE)

#DE bulk
DE_bulk <- read.csv(file.path("..", "data","result--Laminar_4--over--Static_4.csv"))
dds <- DESeq(dds)

using pre-existing size factors

estimating dispersions

gene-wise dispersion estimates

mean-dispersion relationship

final dispersion estimates

fitting model and testing

cont <- c(0,0,0,1,1)
res_de <- results(dds, contrast = cont)
res_de <- res_de[order(res_de$padj), ]

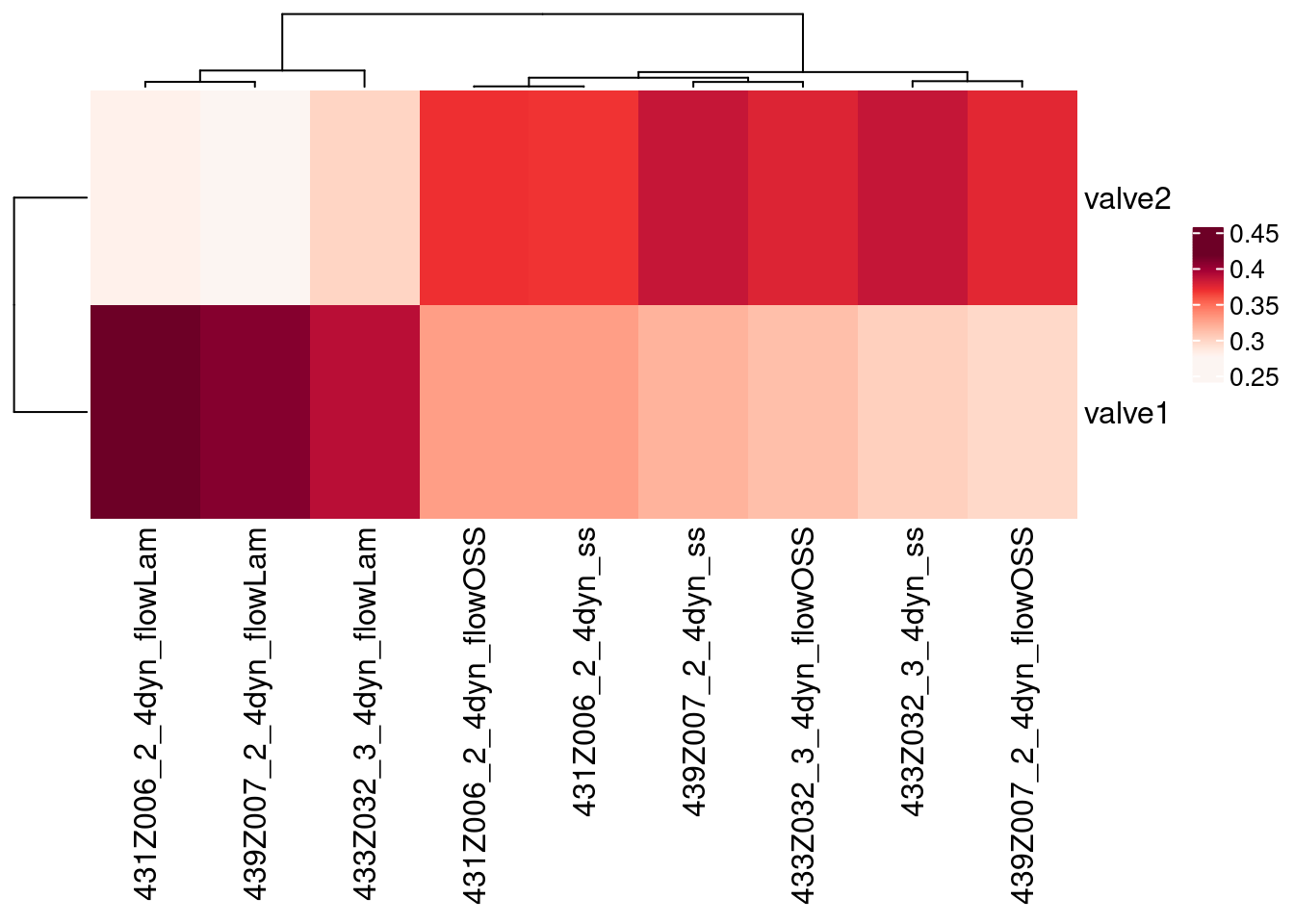

Correlation clustifyr

overlap <- intersect(rownames(sce_val), rownames(vsd))
sce_val <- sce_val[overlap,]
vsd <- vsd[overlap,]

tt_overlap <- tt[overlap,]
top_ordered <- tt_overlap[order(tt_overlap$FDR),]
top <- rownames(top_ordered)[1:100]

res <- clustify(
  input = as.matrix(logcounts(sce_val)),
  metadata = data.frame(colData(sce_val)),
  cluster_col = "val_cluster",
  ref_mat = assay(vsd),
  query_genes = top
)

using # of genes: 100

similarity computation completed, matrix of 2 x 9, preparing output

p <- plot_cor_heatmap(cor_mat = res, col = rev(hcl.colors(51, "Reds")))
p

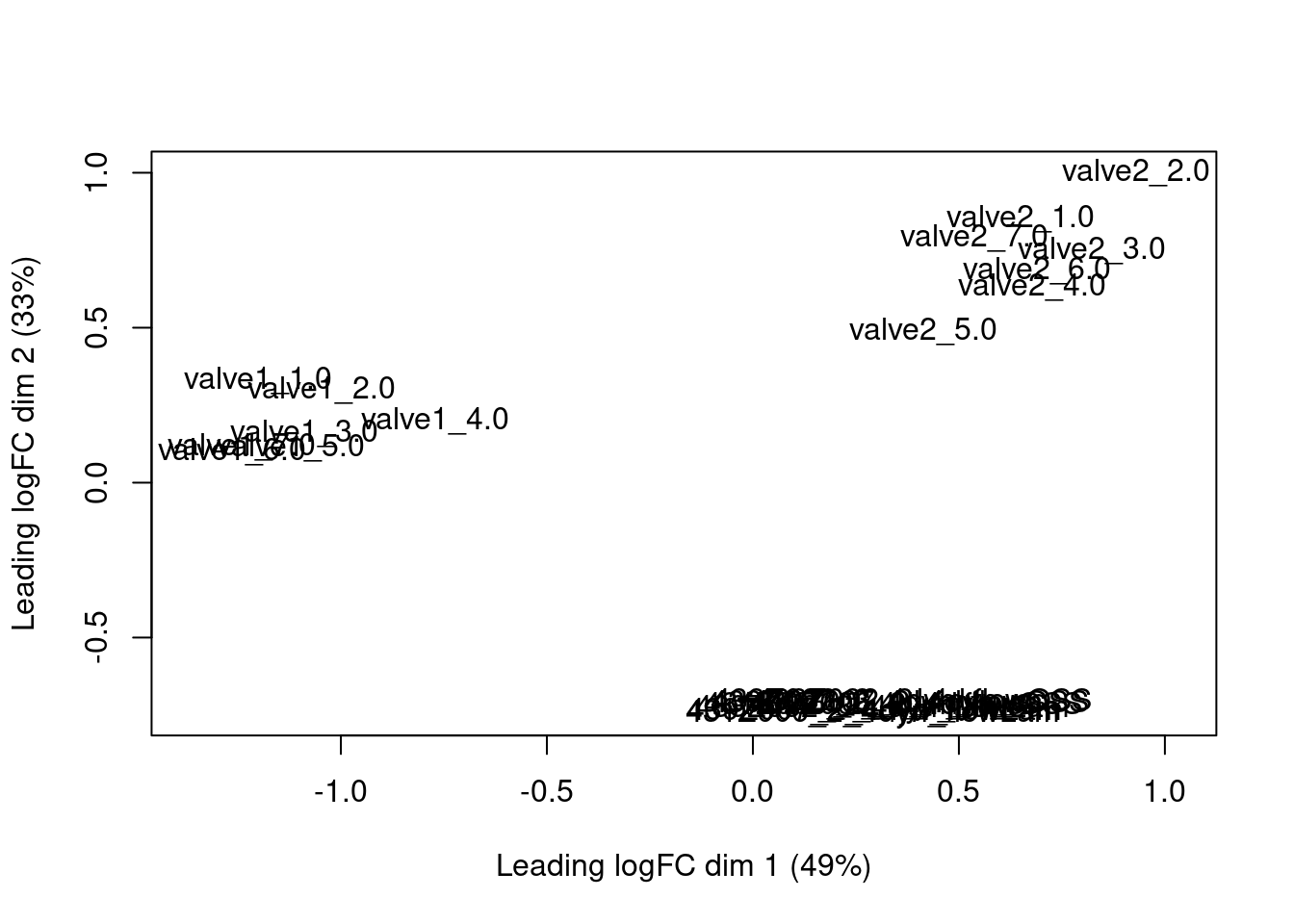

Pb MDS

# | label: pb mds

#pseudo_bulk
pb_val <-  aggregateAcrossCells(sce_val,
                               id=colData(sce_val)[,c("val_cluster", "donor")],
                               use.assay.type = "logcounts")
colnames(pb_val) <- paste0(pb_val$val_cluster, "_", pb_val$donor)

pb_val_sel <- pb_val[top,]
vsd_sel <- vsd[top,]
com <- cbind(assay(vsd_sel), logcounts(pb_val_sel))

d <- DGEList(com, remove.zeros = TRUE)
mds <- plotMDS.DGEList(d, top = 100)

dist_mat <- dist(t(com))

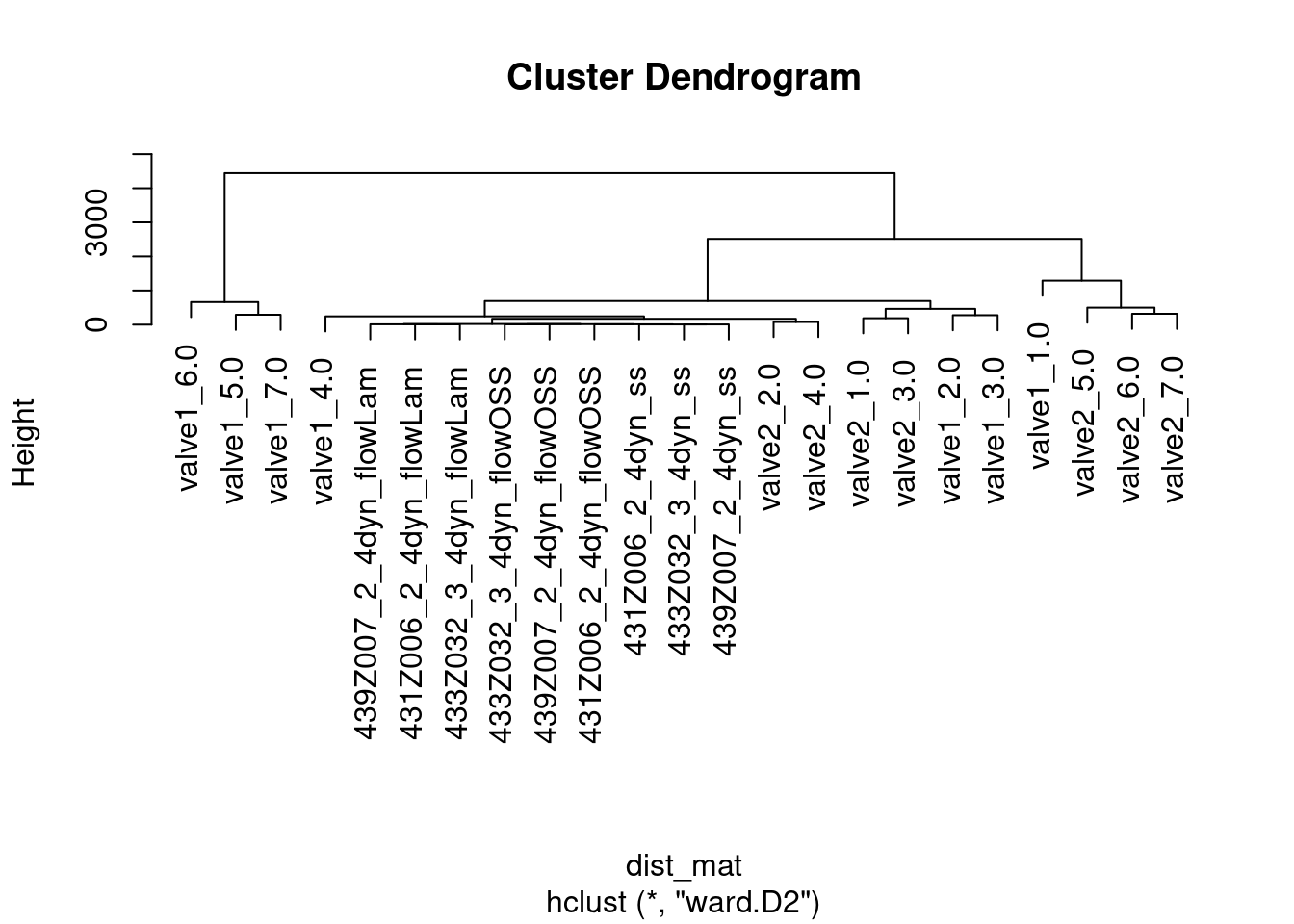

hclust_avg <- hclust(dist_mat, method = 'ward.D2')
plot(hclust_avg)

Heatmap top DE genes v1v2

top <- rownames(top_ordered)[1:100]
top <- top[!top %in% "ENSG00000139329.LUM"]
vsd_sel <- vsd[top,]
cd <- data.frame("cond" = vsd_sel$cond)
rownames(cd) <- colnames(vsd_sel)

hm <- pheatmap(assay(vsd_sel),
        main = "Top DE genes valve2 vs valve1", fontsize = 6,
        col = rev(hcl.colors(51, "RdBu")),
        scale = "row",
        show_colnames = FALSE,
        show_rownames = FALSE,
        cluster_cols = TRUE,
        annotation_col = cd)
hm

Top DE genes bulk

Heatmap

res_sel <- res_de[which(res_de$padj < 0.01),]
res_down <- res_sel[order(res_sel$stat),]
res_up <- res_sel[order(res_sel$stat, decreasing = T),]

top_bulk <- c(rownames(res_up)[1:200], rownames(res_down)[1:200])
top_bulk <- top_bulk[top_bulk %in% rownames(pb_val)]

sub <- logcounts(pb_val)[top_bulk,]
sub <- sub[rowSums(sub) > 0,]
cd <- data.frame("cond" = pb_val$val_cluster,
                 "donor" = pb_val$donor)
rownames(cd) <- colnames(pb_val)

# Specify colors
ann_colors = list(
    cond = c("valve1" = "#849db1", "valve2" = "#ef6f6a"),
    donor = c("1.0" = "#4E79A7", "2.0" = "#F28E2B",
              "3.0" = "#E15759", "4.0" = "#76B7B2",
              "5.0" = "#59A14F", "6.0" = "#EDC948",
              "7.0" = "#B07AA1")
)


hm <- pheatmap(as.matrix(sub),
        main = "Top flow associated DE genes", fontsize = 6,
        col = rev(hcl.colors(50, "RdBu")),
        scale = "row",
        show_colnames = FALSE,
        show_rownames = FALSE,
        cluster_cols = TRUE,
        cluster_rows = TRUE,
        annotation_colors = ann_colors,
        show_row_dend = FALSE,
        annotation_col = cd)
hm

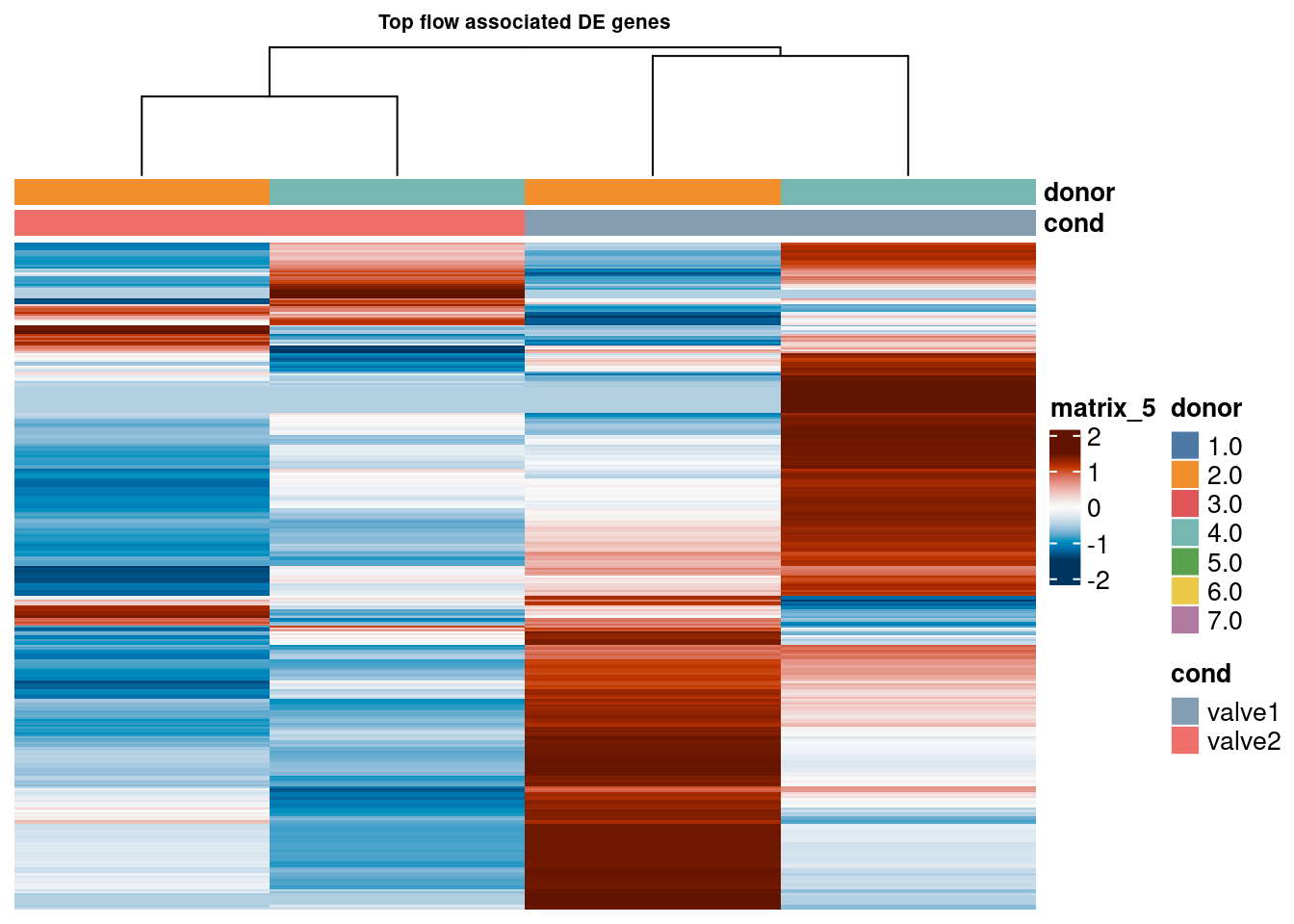

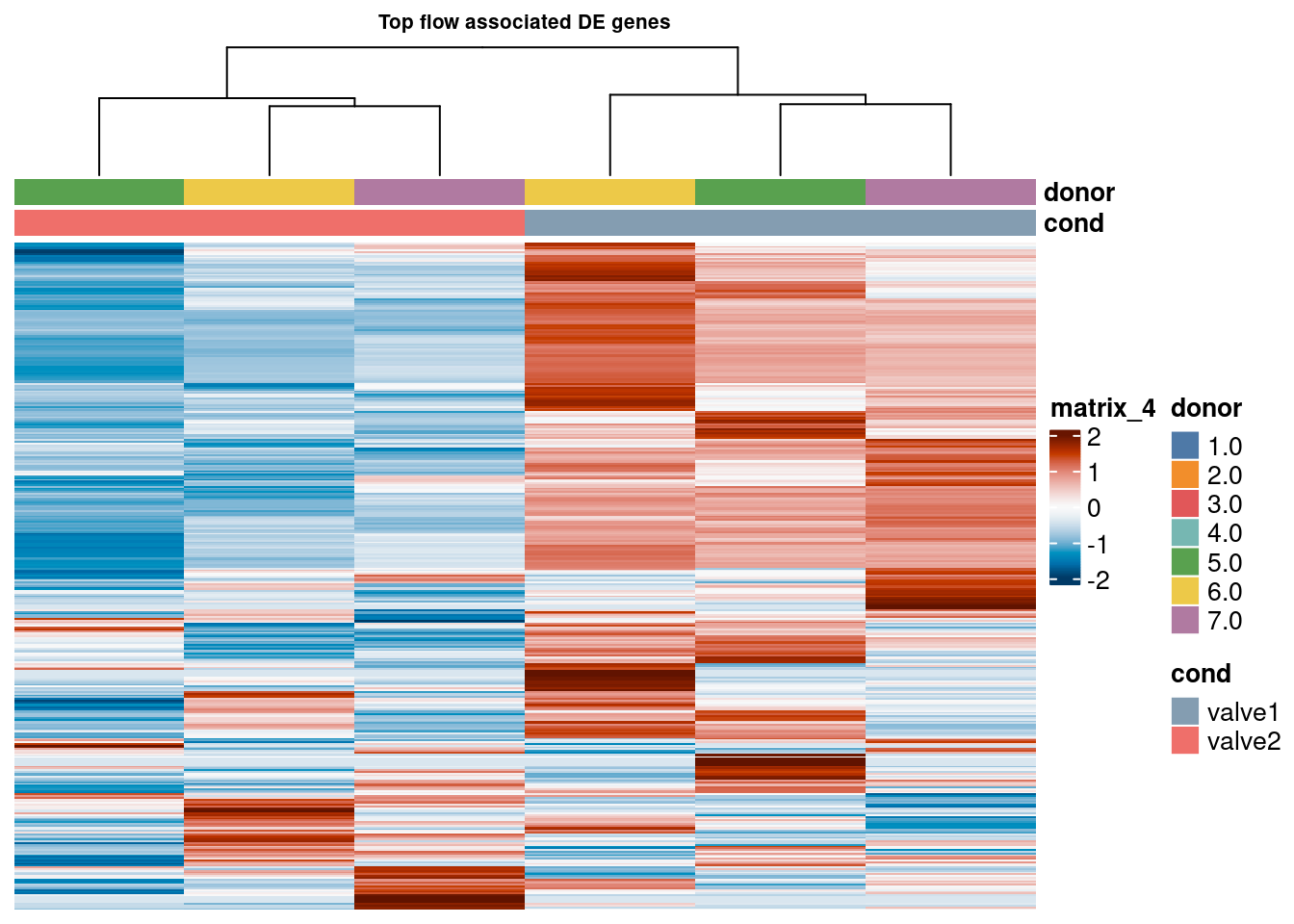

Heatmap patient subgroups

pb_val1 <- pb_val[,pb_val$donor %in% c("6.0", "5.0", "7.0")]
sub1 <- logcounts(pb_val1)[top_bulk,]
sub1 <- sub1[rowSums(sub1) > 0,]
cd <- data.frame("cond" = pb_val1$val_cluster,
                 "donor" = pb_val1$donor)
rownames(cd) <- colnames(pb_val1)

hm <- pheatmap(as.matrix(sub1),
        main = "Top flow associated DE genes", fontsize = 6,
        col = rev(hcl.colors(50, "RdBu")),
        scale = "row",
        show_colnames = FALSE,
        show_rownames = FALSE,
        cluster_cols = TRUE,
        annotation_colors = ann_colors,
        show_row_dend = FALSE,
        annotation_col = cd)
hm

pb_val2 <- pb_val[,pb_val$donor %in% c("2.0", "4.0")]
sub2 <- logcounts(pb_val2)[top_bulk,]
sub2 <- sub2[rowSums(sub2) > 0,]
cd <- data.frame("cond" = pb_val2$val_cluster,
                 "donor" = pb_val2$donor)
rownames(cd) <- colnames(pb_val2)

hm <- pheatmap(as.matrix(sub2),
        main = "Top flow associated DE genes", fontsize = 6,
        col = rev(hcl.colors(50, "RdBu")),
        scale = "row",
        show_colnames = FALSE,
        show_rownames = FALSE,
        cluster_cols = TRUE,
        annotation_colors = ann_colors,
        show_row_dend = FALSE,
        annotation_col = cd)
hm

Gene overlap

bulk <- res_de[overlap,]
bulk <- bulk[which(bulk$padj < 0.01),]
sc <- tt_overlap[tt_overlap$FDR < 0.01,]

myCol <- brewer.pal(3, "Pastel2")

# Chart
venn.diagram(
        x = list(bulk = rownames(bulk), sc = rownames(sc)),
        category.names = c("Flow" , "valve1/valve2"),
        filename = '../out/plots/venn_bulk_sc.png',
        output=T,

        # Output features
        imagetype="png" ,
        height = 480 ,
        width = 480 ,
        resolution = 300,
        compression = "lzw",


        # Circles
        lwd = 2,
        lty = 'blank',
        fill = myCol[1:2],

        # Numbers
        cex = .6,
        fontface = "bold",
        fontfamily = "sans",

        # Set names
        cat.cex = 0.6,
        cat.fontface = "bold",
        cat.default.pos = "outer",
        cat.pos = c(-15, 5),
        cat.fontfamily = "sans",
        #rotation = 1
)

[1] 1

PCA

sce_val <- runPCA(sce_val, subset_row = top_bulk)
plotReducedDim(sce_val, dimred="PCA", colour_by="val_cluster")

pb_val <- runPCA(pb_val, subset_row = top_bulk)

Warning in check_numbers(k = k, nu = nu, nv = nv, limit = min(dim(x)) - : more
singular values/vectors requested than available

Warning in (function (A, nv = 5, nu = nv, maxit = 1000, work = nv + 7, reorth =
TRUE, : You're computing too large a percentage of total singular values, use a
standard svd instead.

plotReducedDim(pb_val, dimred="PCA", colour_by="val_cluster")

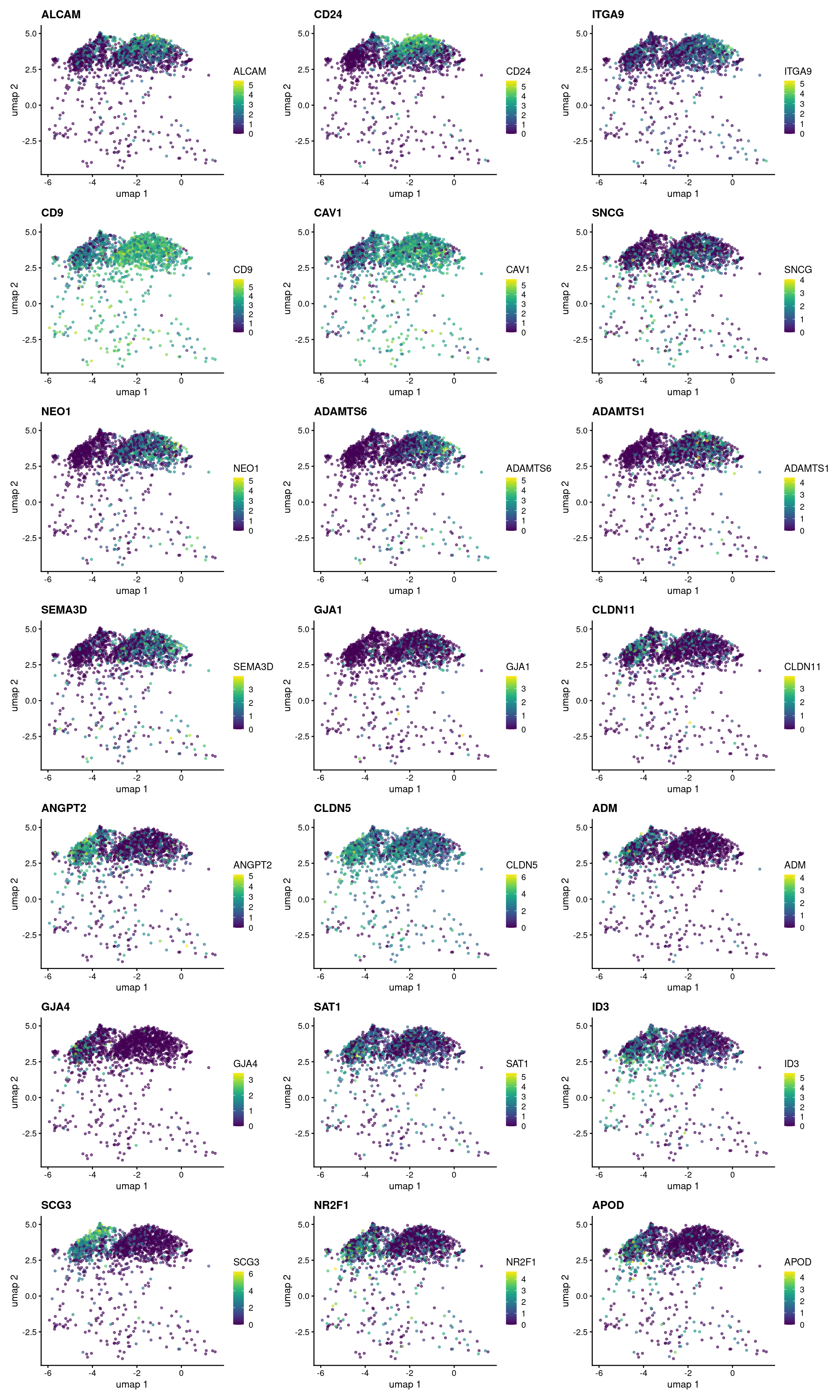

Dimplots

gene_list <- c("ALCAM","CD24","ITGA9","CD9","CAV1","SNCG","NEO1","ADAMTS6",
               "ADAMTS1","SEMA3D","GJA1","CLDN11","ANGPT2","CLDN5","ADM",
               "GJA4","SAT1","ID3","SCG3","NR2F1","APOD")

rowData(sce_val)$gene_short <- rowData(sce_val)$Symbol
dup <- which(duplicated(rowData(sce_val)$gene_short))
rowData(sce_val)$gene_short[dup] <- rownames(sce_val)[dup]
rownames(sce_val) <- rowData(sce_val)$gene_short

dim_list <- lapply(gene_list, function(gene_nam){
  p <- plotReducedDim(sce_val, dimred="umap", colour_by=gene_nam,
                      point_size = 0.8) +
  ggtitle(gene_nam)
})

wrap_plots(dim_list, ncol = 3)

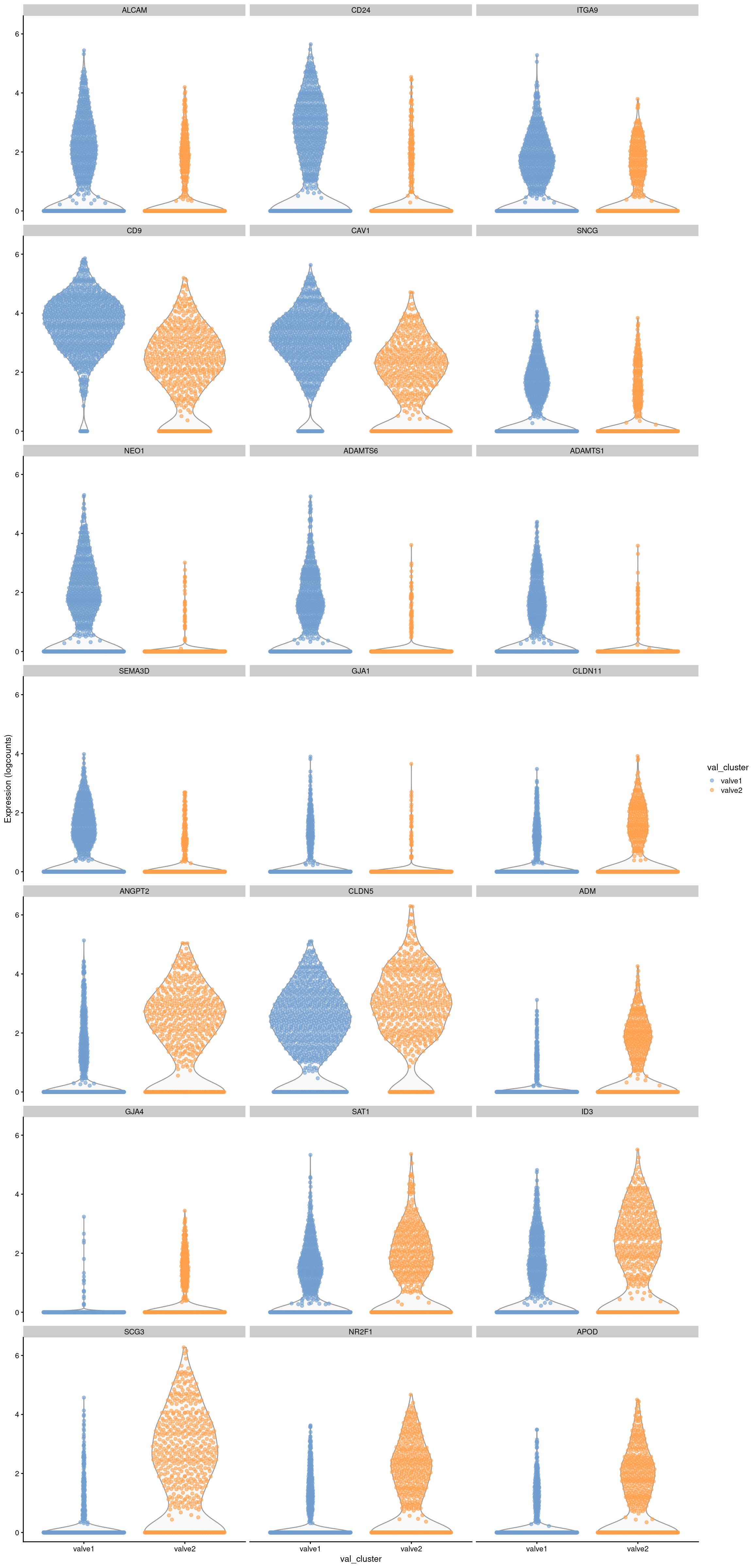

Violinplots

plotExpression(sce_val, features=gene_list,
    x="val_cluster", colour_by="val_cluster", ncol = 3)
